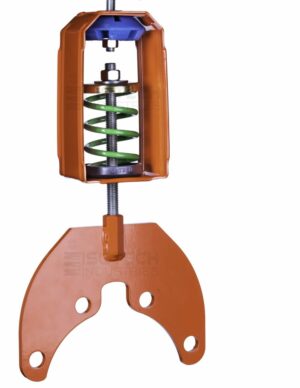

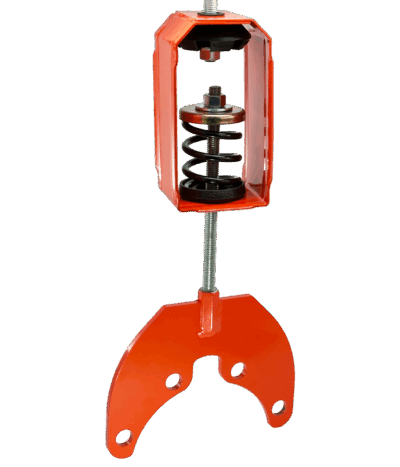

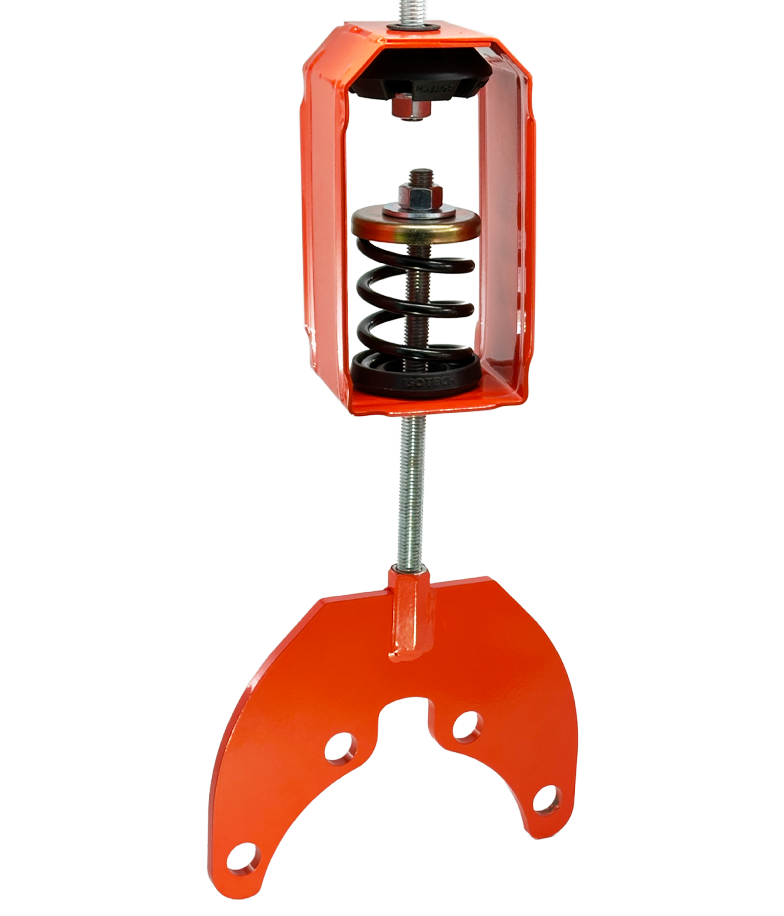

2″ Deflection Spring Hanger W/ Pump Support Hanger

SKU IHB Categories ,

2″ Deflection Spring Hanger W/ Pump Support Hanger

Read more →

Additional information →

Description

ISOLATION HANGERS (IHB)

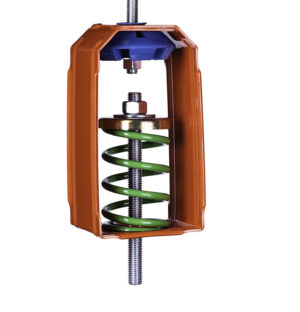

Isotech Model IHB isolation hanger includes 2” deflection color-coded spring with powder-coated finish, and galvanized housing. IHB hangers offers capacity range from 30 to 600 lbs and are installed to isolated suspended HVAC equipment, systems, piping, ductwork and electrical components that generate vibrating noise.  IHB Models can accommodate 30-degree misalignment to prevent contact between supporting hanger rod and isolator housing.  Isotech IHB isolation hangers suit best for applications that involves low frequency noise and equipment with low rpm.

Additional information

Load

100, 200, 300, 400, 500, 600, 800, 1000, 1500

Flange-Size

1.5, 2, 2.5, 3, 4, 5, 6, 8, 10

Element/Cup

N/A, Cup w/ Element, Neoprene Spring Cup, Neoprene in shear Element

Downloads

IHB-100-1500-DATASHEET
IHB-INSTALLATION INSTRUCTIONS

IHBE-2-30-1500-DATASHEET
IHBE-100-1500-DATASHEET
IHBE-3P-100-1500-DATASHEET
IHBE-INSTALLATION INSTRUCTIONS

IHBCE-2-100-1500
