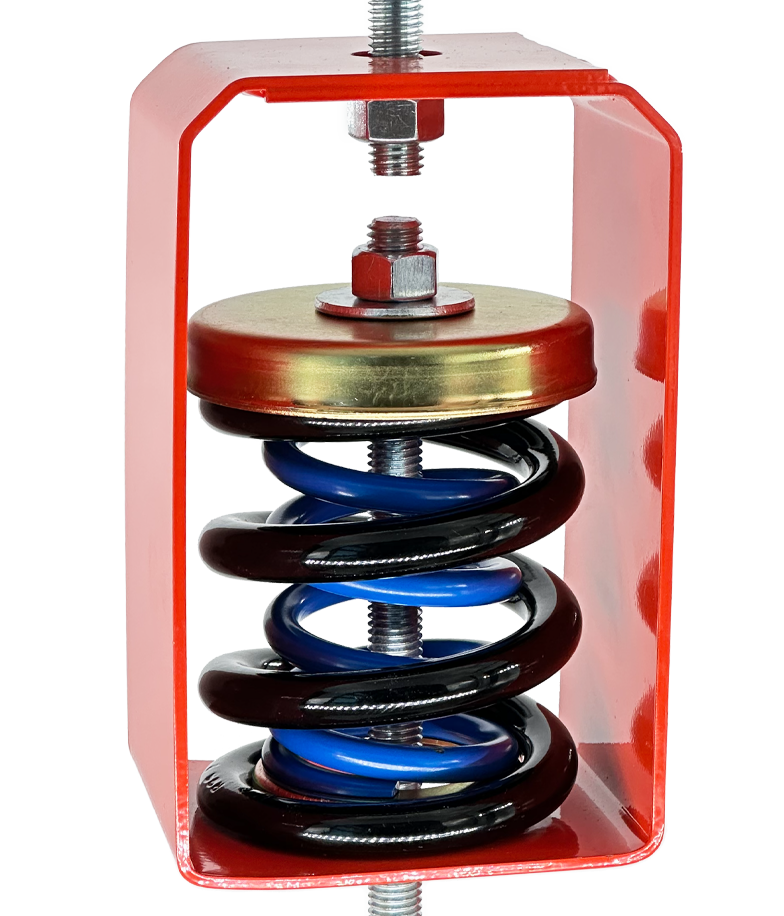

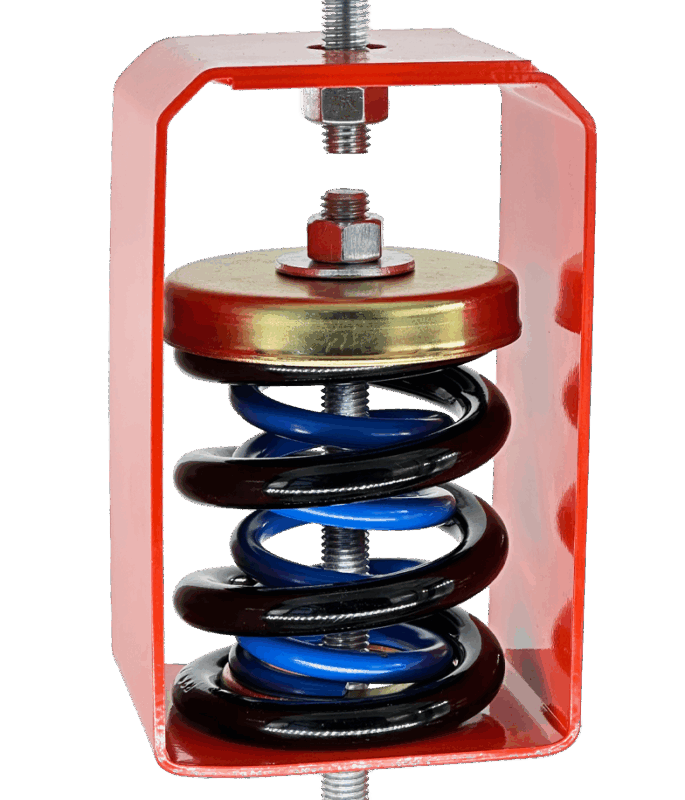

2″ Deflection Spring Hanger(IHC)
SKU IHC Categories ,

ISOTECH® IHC 2″ Delfection Spring Hanger Series is designed for effective noise and vibration control in suspended HVAC systems, piping, ductwork, and electrical components. Its powder-coated housing allows for 30˚ of misalignment, ensuring flexible installation and durability.

The neoprene element provides up to 0.4” deflection at rated load, while each color-coded spring is powder-coated for maximum corrosion resistance. With 50% additional travel beyond the rated deflection and a minimum Kx/Ky ratio of 1.0, the IHC ensures safe and reliable performance.

To optimize high-frequency noise reduction, the spring is supported by two layers of 3/8″ thick, double-ribbed 50 Duro neoprene pads, separated by galvanized sheet metal. The ISOTECH IHC Isolators deliver precision, durability, and superior noise control for sensitive applications.

Load
  • 500
  • 800
  • 1000
  • 1200
  • 1500
  • 1800
  • 2000
  • 2300
  • 2500
Element/Cup
  • C: Neoprene Spring Cup

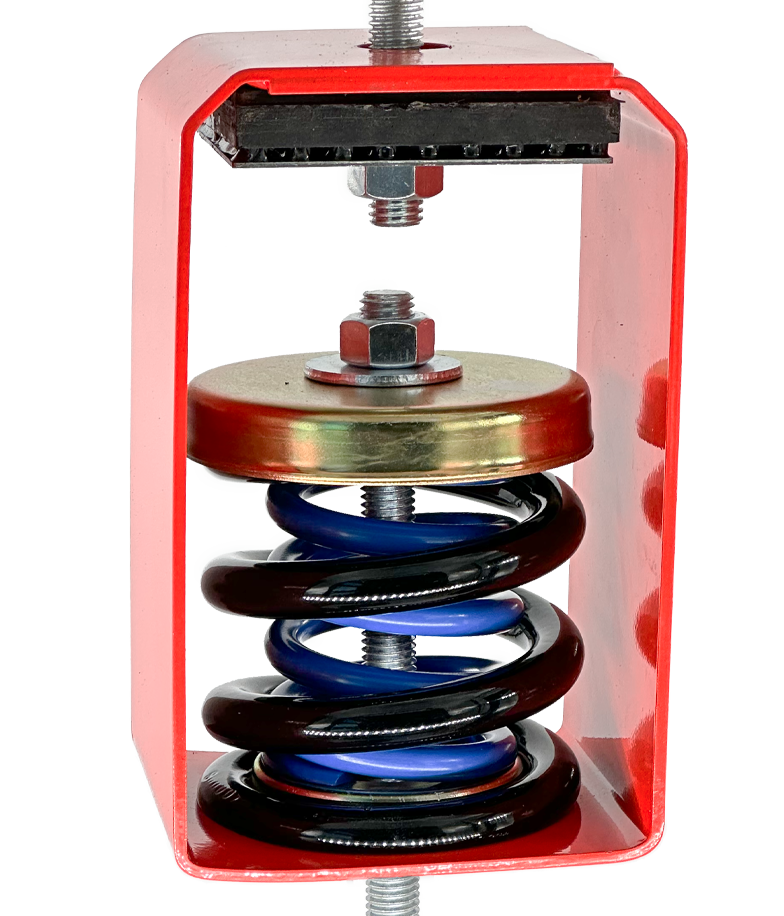

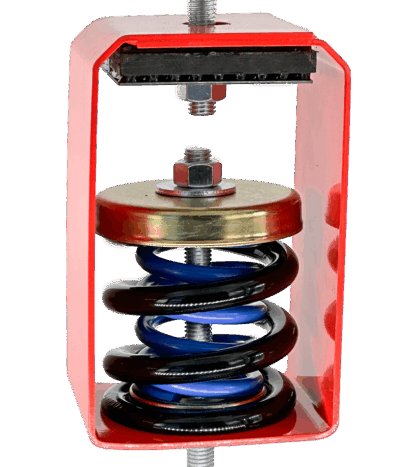

  • CE: Cup w/ Element
  • E: Neoprene in shear Element
  • N/A

Datasheets / Installation Instructions

IHCE-500-2500-datasheet

IHCE-INSTALLATION INSTRUCTIONS
