1″ Deflection Ceiling Hanger

SKU IHA Category

Read more →

Additional information →

Description

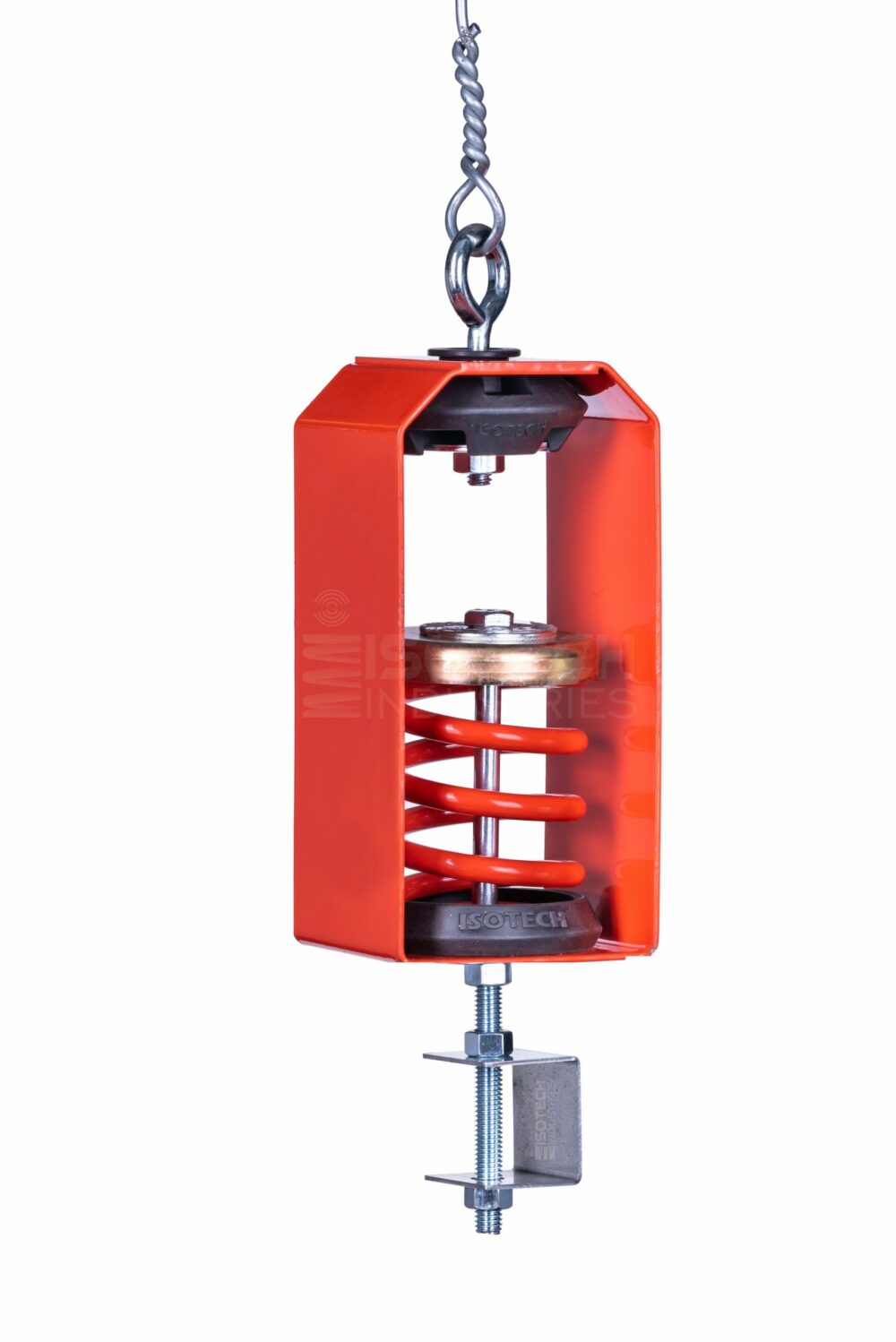

ISOLATION HANGERS (IHA)

Isotech Model IHA isolation hanger includes 1” deflection color-coded spring with powder-coated finish, and galvanized housing. IHA hangers offers capacity range from 30 to 600 lbs and are installed to isolated suspended HVAC equipment, systems, piping, ductwork and electrical components that generate vibrating noise.  IHA Models can accommodate 30-degree misalignment to prevent contact between supporting hanger rod and isolator housing.  Isotech IHA isolation hangers suit best for applications that involves low frequency noise and equipment with low rpm.

Additional information

Load

30, 50, 100, 150, 200, 300, 400, 500, 600

Element/Cup

N/A, Cup w/ Element, Neoprene Spring Cup, Neoprene in shear Element

Accessory

N/A, D: Deck Support, G: Grid Support

Add-On

BE: Bottom Eyebolt, EE: Top and Bottom Eyebolt, N/A, TE: Top eyebolt

Downloads

IHA-30-600-DATASHEET
IHA-INSTALLATION INSTRUCTIONS

IHAE-1-30-600-DATASHEET
IHAE-30-600-INSTALLATION INSTRUCTIONS

IHACE-1-30-600-DATASHEET
