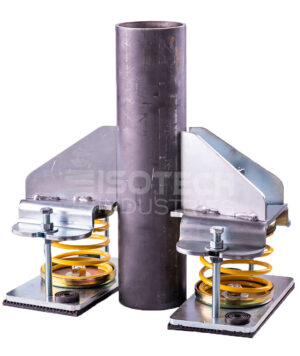

ISOTECH Industries Floating Pipe Riser System (ICSFRS) — Engineered for precision and long-lasting resilience. Our system efficiently manages the thermal expansion and contraction of pipe risers, preventing stress on both the piping and the building structure. As temperatures fluctuate, piping naturally expands and contracts, leading to excessive pressure if not properly managed. Our solution ensures that this movement is controlled, fully isolating the piping from the building to prevent structural damage.
Utilizing advanced spring isolators, ICSFRS eliminates excessive pipe anchor loads at floor supports, allowing for smooth thermal movement while maintaining structural integrity. This design also provides vibration isolation, securing the ultimate protection for both the piping and the building.
Each spring assembly comes factory pre-compressed in zinc-plated housings to accommodate height and installation constraints. Available in 1”, 2″, 3″, 4″, and 5″ deflection options, our springs are powder-coated and color-coded for easy identification and maximum corrosion resistance.
With our engineering expertise, we specify the final load at the structure during the submittal phase to ensure precise implementation across all floors.
